TLC Silica gel 60 with concentrating zone 20 x 2.5 cm

Кат. номер

1055820001

1.05582.0001

These plates allow users to quickly and easily apply any kind of sample, even large volumes of diluted samples. Our concentrating zone plates are based on different adsorption properties of two adsorbents. The first is a large pore concentrating adsorbent where the samples are applied; the second is a selective layer for separation. Regardless of the spots’ shape, size, or position, the sample always concentrates as a narrow band where the two adsorbents overlap and where the separation starts. These plates allow users to quickly and easily apply any kind of sample, even large volumes of diluted samples.

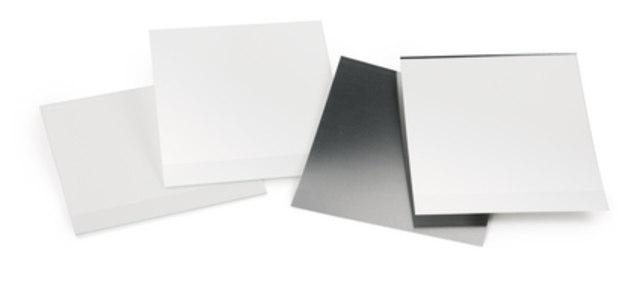

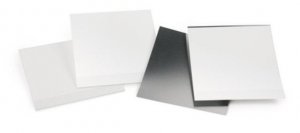

25 Aluminium sheets 20 x 20 cm
Replaces: 5582-7; 5582
Specific surface area (according to BET; 5-Pt. measurement): 480 - 540 m/g
Pore volume (N-isotherm): 0.74 - 0.84 ml/g
d 50 (laser diffraction, size distribution): 9.5 - 11.5 µm
Layer thickness: 160 - 220 µm
Deviation of layer thickness per plate: 40 µm
layer thickness concentrating zone: 90 - 140 µm
Fluctuation in the thickness of the concentration zone: 30 µm
Chromatographic testing:
colour test
hRf-values
- bleu vif organol, colour test, lipophile:
11 - 25
- Ceres Black G, colour test, lipophile: 34 - 48
- ceres Violet brn, colour test, lipophile: 52 - 67
separation number (colourtest, lipophile): 10.5
Typical value determined on a conditioned sheet
Eluent: toluene (45% rel. humidity)

storage conditions	no restrictions.
material	aluminum support, silica gel 60 matrix
Quality Level	100
packaging	pkg of 25 sheets
application(s)	thin layer chromatography (TLC): suitable
layer thickness	200 μm
sheet L × W	20 cm x 20 cm
storage temp.	2-30°C
