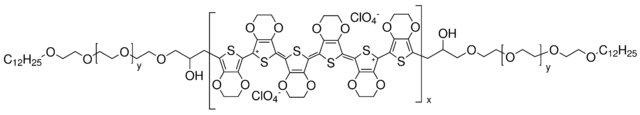

Poly(3,4-ethylenedioxythiophene), bis-poly(ethyleneglycol), lauryl terminated 736287-25G

NACRES:

NA.23

Aedotron™ polymers are solvent-dispersable forms of PEDOT. These are copolymers of doped PEDOT and a flexible, soluble polymer such as poly(ethylene glycol) (PEG). These colloidal dispersions are stabilized by the highly solvated PEG chains which sterically limit the aggregation of the PEDOT blocks. Aedotron polymers are neither acidic nor corrosive, it easily disperses in polar aprotic solvents.
High transparency and high conductivity dispersion in a non-volatile solvent
A single-pass line has the following characteristics:

• Printed line width, 120 µm
• Printed line cross-sectional area, 14.1µm2
• Printed line average height, 70.6 m
• Sheet resistance, 2.0 kOhms/Square
• Resistivity, 14,021 µOhms·cm (71 S/cm)
• Fairly good optical clarity

Conducting polymer dispersion suitable for making conducting films, anti-static layers and transparent electrodes for electroluminescent lamps. 1,2 Dichlorobenzene can be used to cast robust films on many polymeric substrates, but should be tested in each case.
25 g in glass bottle
The block copolymer structure renders the conducting polymer PEDOT highly dispersible in organic solvents. dichlorobenzene is compatible with many coatings and polymers formulations.
Store this product at room temperature (do not refrigerate or freeze). Some settling and aggregation will normally occur. Agitate, sonicate, and filter prior to use. A plug of glass wool in a pipette can be used for easy filtration. The shelf life of this product will vary depending on how it is stored and handled. Product should be discarded if heavy aggregation occurs, or if sonication / filtering are inadequate to produce a good casting solution.
Not for spin-cast
Aedotron is a trademark of TDA Research, Inc.
Aedotron is a trademark of TDA Research, Inc.

form	liquid (dispersion)
Quality Level	100,
contains	perchlorate as dopant
composition	acetonitrile, 4-8 wt. % , Aedotron™ TM-C3 polymer, 0.2-0.9 wt. % , propietary processing additive, 0.1-0.7 wt. % , propylene carbonate, 90-95 wt. % , propylene glycol, 0.0-0.3 wt. %
concentration	0.6-1.1 wt. %, 0.8 wt. % (dispersion in propylene carbonate)
refractive index	n20/D 1.411
particle size	200-600 nm (in suspension)
conductivity	10-45 S/cm (bulk)
density	1.141 g/mL at 25 °C

pictograms	GHS02,GHS07
signalword	Warning
hcodes	H226 - H319
pcodes	P210 - P233 - P240 - P241 - P242 - P305 + P351 + P338
RIDADR	UN 1993C 3 / PGIII
WGK Germany	WGK 2
Flash Point F	100.0 °F
Flash Point C	37.8 °C
