K19 Dye 791415-250MG

CAS Number:	847665-45-6
PubChem Substance ID:	329768273
NACRES:	NA.23

K19 Dye is an amphiphilic ruthenium sensitizer with a good molar extinction coefficient, which remains stable under thermal stress and light soaking. It can be synthesized by forming a reaction mixture of 4,4′-Bis(p-hexyloxystyryl)-2,2′-bipyridine, dichloro(p-cymene)ruthenium(II) dimer, and 4,4′-dicarboxylic acid-2,2′-bipyridine. It shows an overall power conversion efficiency (PCE) of 11% and can be used as an active material in electrochemical applications.
K19 Dye is an organo-metallic dye that can be used as a photosensitizing material in the fabrication of dye sensitized solar cells (DSSCs). It shows a short circuit photocurrent density of 15.1 mA/cm2, an open circuit voltage of 747 mV and a fill factor of 0.69.
Electron transfer from K-19 dye to the conduction band of Titania is completed within 20 fs while charge recombination has a half-life of 800 μs. The high extinction coefficient of this sensitizer enable realization of a new generation thin-film dye-sensitized solar cells (DSCs) yielding high conversion efficiency at full sunlight, even with viscous electrolytes based on ionic liqs. or nonvolatile solvents, making solar cell devices exhibit excellent stability under light soaking.
250 mg in glass insert
Dyesol® Product. Dyesol is a registered trademark of Dyesol Ltd.
Dyesol is a registered trademark of Greatcell Solar

Quality Level	100,
assay	85% (HPLC)
form	powder (black)
mp	>300 °C
max	536, 357, 311 nm at 0.02 mM in DMF (lit.)

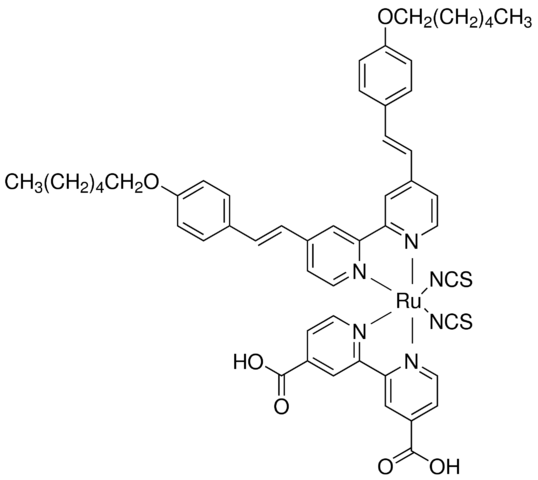

SMILES string	OC(C1=CC(C2=CC(C(O)=O)=CC=N2)=NC=C1)=O.S=C=N[Ru]N=C=S.CCCCCCOC(C=C3)=CC=C3/C=C/C4=CC=NC(C5=NC=CC(/C=C/C6=CC=C(OCCCCCC)C=C6)=C5)=C4
InChI	1S/C38H44N2O2.C12H8N2O4.2CNS.Ru/c1-3-5-7-9-27-41-35-19-15-31(16-20-35)11-13-33-23-25-39-37(29-33)38-30-34(24-26-40-38)14-12-32-17-21-36(22-18-32)42-28-10-8-6-4-2;15-11(16)7-1-3-13-9(5-7)10-6-8(12(17)18)2-4-14-10;2*2-1-3;/h11-26,29-30H,3-10,27-28H2,1-2H3;1-6H,(H,15,16)(H,17,18);;;/q;;2*-1;+2/b13-11+,14-12+;;;;
InChI key	HBARXZGSEMEPLK-BPSJQPAOSA-N

pictograms	GHS07
signalword	Warning
hcodes	H315 - H317 - H319 - H335
pcodes	P280 - P302 + P352 - P305 + P351 + P338
Target Organs	Respiratory system
RIDADR	NONH for all modes of transport
WGK Germany	WGK 3
Flash Point F	Not applicable
Flash Point C	Not applicable
