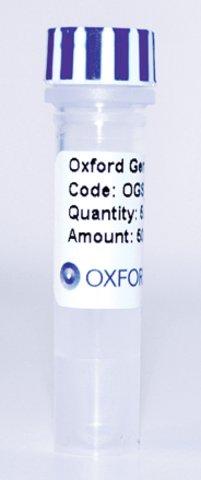

PSF-CMV-PURO-NH2-RLUC - N-TERMINAL RLUC TAG MAMMALIAN PLASMID OGS1369-5UG

NACRES:

NA.85

This plasmid is designed to express tagged proteins in mammalian cells either by transient transfection or by creating stable cell lines. It contains a puromycin resistance expression cassette using the human Ubiquitin promoter to drive expression and allow for the selection of cells containing the plasmid.
About the Peptide Tag:This plasmid contains an n-terminal Renilla luciferase reporter tag that can be fused to a gene of interest to allow protein detection.
Promoter Expression Level: This plasmid contains the mammalian CMV promoter to drive gene expression. We have tested all of our mammalian promoters in a range of cell types and CMV is consistently the strongest in those we have studied. However there are many reports of the CMV promoter demonstrating silencing by methylation in long-term culture.
Sequence
Please select the file type you require. For reference most cloning programs will import a .gb (Genbank) file and will show all of the plasmids features automatically when downloaded and imported.
Genebank Vector Sequence File,
FASTA Vector Sequence File,
Full Plasmid Map,
Quick-reference Plasmid Map,
Analysis Note
Looking for more vector options to move your experiments forward faster? Consider a custom cloning vector designed and built by Oxford Genetics™. Find out more at Oxford Genetics, - Sigma's partner for cloning and expression vectors for molecular biology and synthetic biology applications.
Oxford Genetics is a trademark of Oxford Genetics Ltd

form	buffered aqueous solution
mol wt	size 7082 bp
conjugate	Renilla luciferase conjugate
Origin of replication	pUC (500 copies)
Peptide cleavage	no cleavage
Peptide tag location	N-terminal
Promoter	Promoter name: CMV Promoter activity: constitutive Promoter type: mammalian
bacteria selection	kanamycin
mammalian cells selection	puromycin
reporter gene	Renilla luciferase
shipped in	ambient
storage temp.	20°C

RIDADR	NONH for all modes of transport
Flash Point F	Not applicable
Flash Point C	Not applicable
