PSF-CMV-PURO-COOH-FRCFP - C-TERMINAL CFP TAG MAMMALIAN PLASMID OGS1366-5UG

NACRES:

NA.85

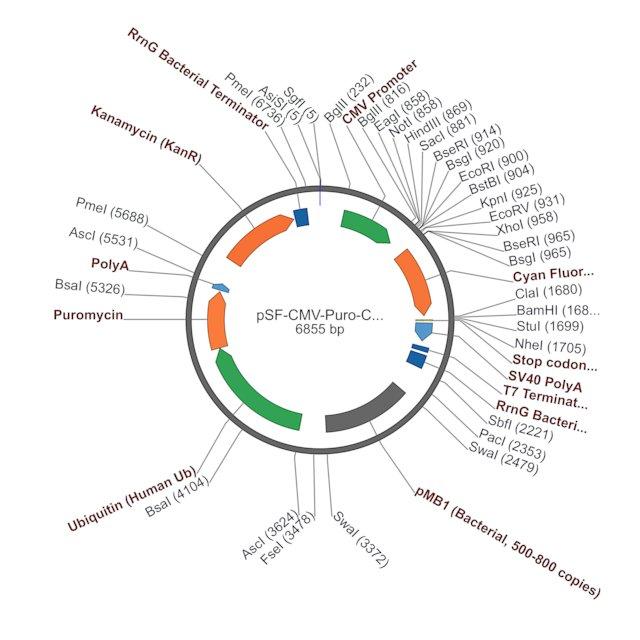

This plasmid is designed to express tagged proteins in mammalian cells either by transient transfection or by creating stable cell lines. It contains a puromycin resistance expression cassette using the human Ubiquitin promoter to drive expression and allow for the selection of cells containing the plasmid.
About the Peptide Tag:This plasmid contains a c-terminal non-aequorea based cyan/blue fluorescent protein (FrCFP) reporter tag that can be fused to a gene of interest to allow protein detection.
About the Cleavage Tag: This plasmid does not contain a protease cleavage site.
Promoter Expression Level: This plasmid contains the mammalian CMV promoter to drive gene expression. We have tested all of our mammalian promoters in a range of cell types and CMV is consistently the strongest in those we have studied. However there are many reports of the CMV promoter demonstrating silencing by methylation in long-term culture.
Analysis Note
OXGENEs technology platforms and expert solutions accelerate the discovery, development and manufacture of cell and gene therapies. We work with you to express your gene of interest at scale, with high levels of purity. In addition, our integrated bioinformatics and high-throughput gene editing technology creates a streamlined workflow for automated cell line production. learn more at www.oxgene.com ,

form	buffered aqueous solution
mol wt	size 6855 bp
conjugate	cyan fluorescent protein (CFP) tagged
Origin of replication	pUC (500 copies)
Peptide cleavage	no cleavage
Peptide tag location	C-terminal
Promoter	Promoter name: CMV Promoter activity: constitutive Promoter type: mammalian
bacteria selection	kanamycin
mammalian cells selection	puromycin
reporter gene	CFP
shipped in	ambient
storage temp.	20°C

RIDADR	NONH for all modes of transport
Flash Point F	Not applicable
Flash Point C	Not applicable
