pSF-CMV-COOH-FLAG OGS619-5UG

NACRES:

NA.85

The pSF-CMV-COOH-FLAG expression vector is a 4.5 kb derivative of pSF-CMV-Amp for transient expression of intracellular C-terminal FLAG fusion proteins in mammalian cells. The FLAG epitope is a small- hydrophilic- 8 amino acid-tag (DYKDDDDK) that enables sensitive detection and high quality protein purification using anti-FLAG products such as the anti-FLAG M2 antibody (catalogue number F3165). pSF-CMV-COOH-FLAG is a shuttle vector, containing both E. coli and SV40 origins of replication, for propagation in bacterial and mammalian cells. Efficiency of replication and genomic integration is optimal when using an SV40 T antigen expressing mammalian host. The promoter regulatory region of the human cytomegalovirus drives transcription of FLAG fusion constructs. The multiple cloning site of this vector is not preceded by a translation initiation signal. A translational start sequence must be included with the insert DNA.

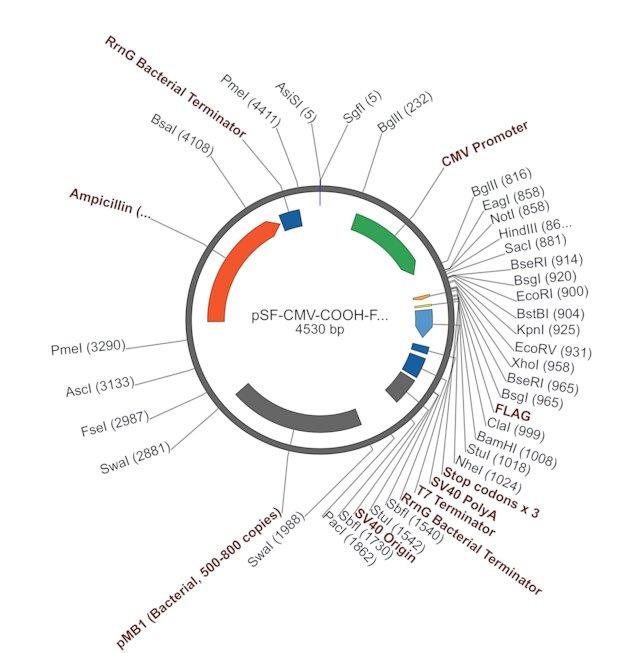

Cloning in a gene: This plasmid contains a gene within the main multiple cloning site (NotI-ClaI). Any plasmid that we sell where the gene is this configuration will be located in the exact same position in relation to the start and stop codon of the gene. The only exceptions to this rule are fusions proteins where the fusion gene may be positioned at the front or end of the MCS to allow gene fusion.By positioning all of our genes in the same location it allows them to be transferred between plasmids using the same cloning method and restriction sites regardless of the plasmid being used from our product range. Inserting a new gene into this plasmid should be easily possible using a range of standard restriction enzyme sites that flank the gene currently in the vector.Multiple cloning site notes:In the multiple cloning site there are two important restriction sites called BsgI and BseRI sites. These sites both cut the DNA at the same position and cleave the stop codon of the gene in the multiple cloning site in this plasmid thereby producing a TA overhang. This overhang is compatible with any of our peptide or reporter fusion tag plasmids also cut with either of these enzymes. This allows seamless C-terminal fusions to be made with the gene in this multiple cloning site using a single cloning step from our C-terminal peptide and reporter tag product range. Normally the easiest method is to clone the C-terminal tag from our other plasmid products into this plasmid using BsgI or BseRI and the downstream ClaI restriction site.BseRI and BsgI sites are non-palindromic and cleave a defined number of bases away from their binding sites. This allows them to cut the upstream stop codon in the gene in this plasmid regardless of the gene sequence.
Sequence
Analysis Note
OXGENEs technology platforms and expert solutions accelerate the discovery, development and manufacture of cell and gene therapies. We work with you to express your gene of interest at scale, with high levels of purity. In addition, our integrated bioinformatics and high-throughput gene editing technology creates a streamlined workflow for automated cell line production. learn more at www.oxgene.com ,
Oxford Genetics is a trademark of Oxford Genetics Ltd
FLAG is a registered trademark of Sigma-Aldrich Co. LLC

recombinant	expressed in human cells
form	buffered aqueous solution
mol wt	size 4530 bp
conjugate	FLAG® tagged
Origin of replication	pUC
Peptide cleavage	EKT
Peptide tag location	C-terminal
Promoter	Promoter name: CMV Promoter activity: constitutive Promoter type: mammalian
bacteria selection	ampicillin
reporter gene	none
shipped in	ambient
storage temp.	20°C

RIDADR	NONH for all modes of transport
Flash Point F	Not applicable
Flash Point C	Not applicable
