Aquivion® E98-09S

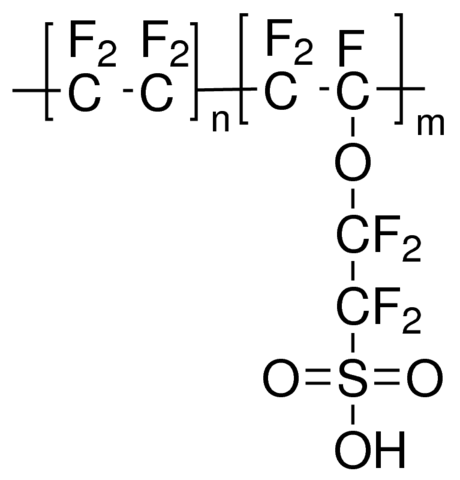

Linear Formula:	[CF2CF(OCF2CF2SO3H)]m[CF2CF2]n
CAS Number:	1163733-25-2
NACRES:	NA.23

Кат. номер

802735-1EA-PW

802735-1EA

Aquivion® PFSA ionomer membranes are melt-extruded films based on the short-side-chain (SSC) copolymer of Tetrafluoroethylene and the Sulfonyl Fluoride Vinyl Ether (SFVE) F2C=CF-O-(CF2)2-SO2F industrially produced by Solvay Specialty Polymers. Following a film hydrolysis the perfluoropolymers functional groups are operative in their sulfonic acid form, SO3H.
Aquivion® PFSA membranes are used for electrochemical applications such as, but not limited to, polymer electrolyte fuel cells, electro-deionization systems, ozone generators, water electrolyzers, hydrogen separators and compressors, redox flow batteries as well as pervaporation or gas humidification systems.
Handling:
Membranes are packed and sealed in a barrier protection pouch inside a cardboard box to prevent damage or deterioration. It is recommendable storing the product in a clean, humidity-controlled environment protected from direct sunlight or other sources of irradiation or heat. Sheet dimensions are based on product conditioned at 23 °C and about 50 % relative humidity. They may slightly vary upon exposure to different ambient conditions. Maximum temperature rating is 230°C, overheating will result in polymer degradation, discoloration and release of toxic volatile decomposition products.
Aquivion is a registered trademark of Solvay Group

Quality Level	100,
form	membrane sheet
contains	CF3 polymer chain ends as stabilizer
L x W x thickness	18 cm x 18 cm x 90 µm

RIDADR	NONH for all modes of transport
WGK Germany	WGK 3
Flash Point F	Not applicable
Flash Point C	Not applicable
